Single Screw Extruder Plastic HDPE/LDPE/PE Gas Pipe Extrusion Line

Single screw extruder plastic HDPE/LDPE/PE Gas Pipe extruder production lineApplication:Plastic HDPE Gas Pipe Extruder is mainly used in the production of agricultural  drainage, water supply and Gas supply purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul

Featured Products

Single screw extruder plastic HDPE/LDPE/PE Gas Pipe extruder production line

Application:

Plastic HDPE Gas Pipe Extruder is mainly used in the production of agricultural  drainage, water supply and Gas supply purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.


Single Screw Extruder Plastic HDPE/LDPE/PE Gas Pipe Extruder Production Line


Great advantages:

1. High lineal extrusion speed, big capacity and low power consumption, and achieved multi-layers co-extrusion with 1-5 layers.
2. The copper bush is more wear-resisting and prevent material leakage which can guarantee a stable running of extruder.
3. Material feed via spiral groove, efficient transmission and can effectively reduce back-pressure on extruder.
4. Unique design (barrier, shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and stable output capacity.
5. High torque gear box has a smart figuration, compact construction, low noise, high carrying capacity, high transmission efficiency can assure long-time trouble-free operation;
6. PCA(pipe air cooling system) of die head largely increase the extrusion speed and decrease the cooling length of extrusion line, and improve quality of inner pipe surface;
7. Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently;
8. Chip-free cutter ensuing flat and smooth cutting surface of pipe.


Work flow and detailed information :
Feeder • To feed material into extruder;
Extruder• World famous brand electrical component such as Siemens,Schneider, ABB etc;
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface.
Die head  40Cr material
 Complete set include extrusion die head, Slotting & water ring type calibration sleeve
• Apply to PE/PP, co-extrusion, multi-layers co-extrusion etc

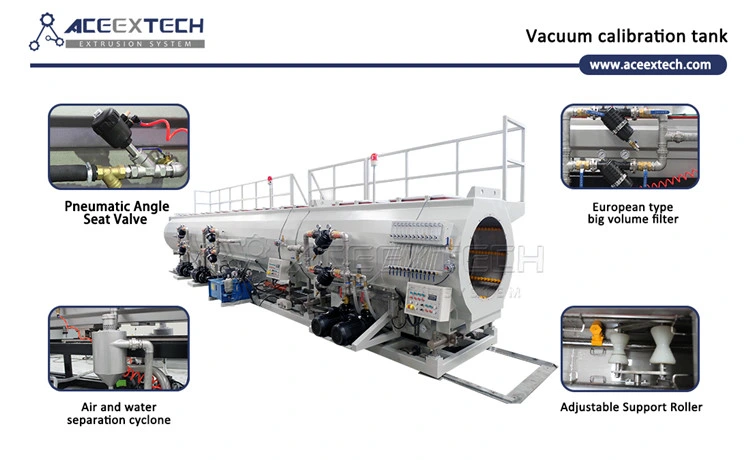

Vacuum calibration tank Include full set of vacuum and water pump
 length from 6m-9m

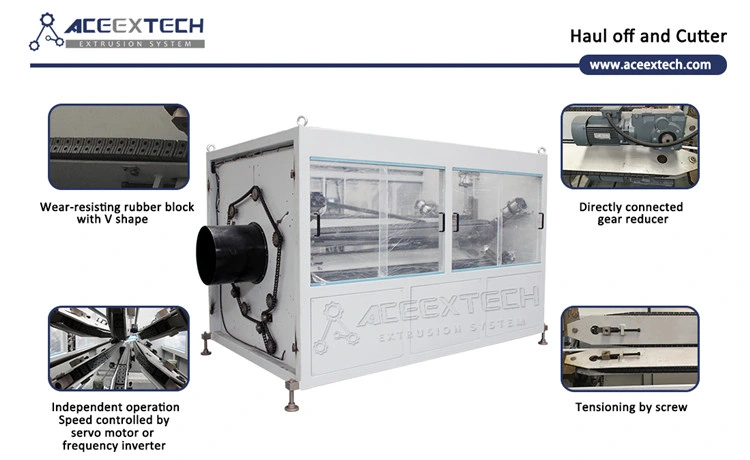

Haul off Upper and lower caterpillar is driven separately by the frequency inverter
 Fast change type pads
Cutter  Tracking cutter or Non-dust cutter, Blade rotates around pipe and cut off pipe with smooth surface.
• Synchronous control
Stacker Stainless steel 304 as touching material
 Discharge driving by air cylinder

Single Screw Extruder Plastic HDPE/LDPE/PE Gas Pipe Extruder Production Line


Single Screw Extruder Plastic HDPE/LDPE/PE Gas Pipe Extruder Production Line


Single Screw Extruder Plastic HDPE/LDPE/PE Gas Pipe Extruder Production Line


Single Screw Extruder Plastic HDPE/LDPE/PE Gas Pipe Extruder Production Line
Single Screw Extruder Plastic HDPE/LDPE/PE Gas Pipe Extruder Production Line



Single Screw Extruder Plastic HDPE/LDPE/PE Gas Pipe Extruder Production Line


Technical Parameter:
Diameter range(mm)Extruder modelMax. Capacity(kg/h)Max. lineal speed(m/min)Extruder power(KW)
Ф20-63ASS65/332201255
Ф20-63ASE60/3846030110
Ф20-63 DualASE60/3846015×2110
Ф20-110ASS65/332201255
Ф20-110ASE60/3846030110
Ф20-160ASE60/3846015110
Ф50-250ASE75/3860012160
Ф110-450ASE90/388508250
Ф250-630ASE90/381,0504280
Ф500-800ASE 120/381,3002315
Ф710-1200ASE120/381,4501355
Ф1000-1600ASE90/38
ASE90/38
1,9000.6280
280

 Main components:
- Motor: Siemens, WEG, SEW
- Gear reducer: SEW, FALK
- Bearing: SKF, FAG, NSK
- Air cylinder: Festo, SMC, AirTac
- PLC interface and module: Siemens, Schneider, Beckhoff
- Frequency inverter: ABB, Schneider, Siemens
- Servo motor: Lenze, Delta
- Pressure sensor: Dynisco, Gefran
- Low voltage component: Siemens, Schneider, Omron, LS
- Temperature controller: Omron, RKC
- Solid state relay: Crydom, Celduc


Main Extruder 3D details:

A, Long groove between feed throat and screw to improve output highly
B. Accurate temperature control system on feed section to match different plastics
C. Unique screw design to achieve higher plasticizing and products quality
D. Gearbox of high torsion balance to realize stable running
E. H shape frame to decrease vibrating
F. PLC (Simatic Multi Panel) operation panel to ensure synchronization
G. Energy conservation, easy to maintenance
